pvc water pipe HO5RN-F/H07RN-F electrical cable wire

FOB Reference Price:Get Latest Price
US $0.5-10 / Meters | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
shujie cable
Model Number:
H05RN-F /HO7RN-F
Insulation Material:
PVC
Type:
Low Voltage
Application:
Construction
Conductor Material:
Copper
Jacket:
PVC
Core:
5core or As customer request
sheath:
with sheath
voltage:
0.6/1KV
color:
black or as your request
instal:
fix-install
Max tempreture:
70 oC
Min tempreture:
0 oC
In short tempreture:
160 oC
Section of 5core:
5*2.5-5*400mm2
Supply Ability
Supply Ability:
1000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
Wooden, Steel-Wooden Drums or according to customers' request
Port
ningbo/shanghai
Lead Time :
5-10day,according to cusotmers' request

Specifications

1.VDE ISO9001,CCC,CQC,EWC approval
2. outdoor cable
3,OEM work
4.12 years experience

pvc water pipe  HO5RN-F/H07RN-F electrical cable wire



Characterastic:


Founction: The cable is used as power distribution and transmission line at rated voltage 0.6/1 KV

which can be fixed installed.

1)The long time working temperature of cable should not be higher than 70°C.
2)When core is in short-circuit (max 5s)the temperature should not exceed 160°C.
3)While installation the ambient temperature should not lower than 0°C,and the
bending radius should not be less than 10 times of outer diameter of cable.






cable-30

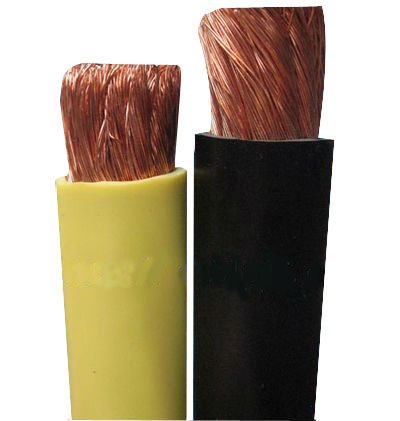

product description


factory view


packing


Installation

  1. The installation temperature should not cover 0°C, if the ambient temperature is lower than 0°C, the cable should be pre-heated.
  2. The bending radius of cable should not less than 8 times.
  3. After installation, the cable should withstand voltage test for 15 min/3.5kv dc .

In the air

  1. As the single core cable laying in parallel, the distance between the cable; center is 2 times(for cables, which cross sectional area of conductor<=185mm2) and 90mm(for cables, which cross sectional area of conductor>=240mm2)
  2. Ambient temperature:40°C.
  3. Max. temperature of conductor:70°C.
  4. Rating factors of current rating for ambient temperature:

Air temperature

20°C

25°C

35°C

40°C

45°C

Rating

1.12

1.06

0.94

0.87

0.79



Direct in ground:

  1. When the single core cables are installed separately, the distance between the cable:center is 12 times of the cable diameter.
  2. Ambient temperature: 25°C.
  3. Max. temperature of conductor: 70°C.
  4. Soil thermal resistivity: 1.0°C.m/W.
  5. Depth: 0.7m.
  6. Rating factors under different ambient temperature.

Air temperature

15°C

20°C

30°C

35°C

Rating factors

1.12

1.05

0.94

0.88



Max, temperature at the short circuit

Max, the short cut rating

160°C

I=94S/tA
